FAN6500xx Synchronous PWM buck regulator, high performance, voltage mode, 65V, up to 10A

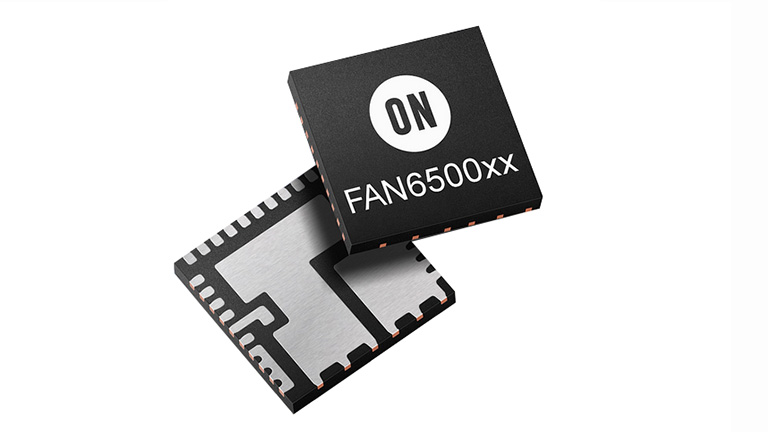

ON Semiconductor FAN6500xx product series sample

Multi-chip module PWM buck regulators offering market-leading current density and fully integrated MOSFETs

FAN6500xx is a wide VIN highly efficient synchronous buck regulator, with integrated high side and low side power MOSFETs. The device incorporates a fixed frequency voltage mode PWM controller supporting a wide voltage range from 4.5 V to 65 V and can handle continuous currents up to 10 A. Includes a 0.67% accurate reference voltage to achieve tight regulation. The switching frequency can be programmed from 100 kHz to 1 MHz. This single phase buck regulator offers complete protection features including Over current protection, Thermal shutdown, Under−voltage lockout, Over voltage protection, Under-voltage protection and Short−circuit protection. ON Semiconductor has integrated its PowerTrench® MOSFET technology to create a rugged integrated solution that delivers industry leading power density and efficiency for DC-DC applications. By combining ON Semiconductor’s PowerTrench MOSFET process with industry-leading packaging technology in a PQFN footprint (6 x 6mm package), the FAN65008B/5A/4B PWM buck converters deliver extremely low parasitics in the power path, enabling developers to realize a peak efficiency of 98.5%, with low ringing and better EMI than a solution that uses an external MOSFET.

Benefits

  • Supports wide range of applications
  • Allows for optimization between size, efficiency, and maximum duty cycle
  • Maintain voltage accuracy
  • Best Efficiency at heavy loads and also at light loads
  • Fully protected against voltage, current and temperature faults
  • Fully integrated high performance package and PowerTrench® MOSFETs for enhanced efficiency

Applications

  • High Voltage POL Module
  • Telecommunications
  • Networking and Servers Systems, USB−PD
  • Industrial Equipment’s/Automation



Product Compliance Status Topology Control Mode VCC min/max (V) VO Typ (V) IO Typ (A) fSW Typ (kHz) Packaging Type
FAN65004B Pb-free
Halide free
Active Step-Down Voltage Mode 4.5 / 65 Adjustable 6 100 - 1000 PQFN-35
FAN65005A Pb-free
Halide free
Active Step-Down Voltage Mode 4.5 / 65 Adjustable 8 100 - 1000 PQFN-35
FAN65008B Pb-free
Halide free
Active Step-Down Voltage Mode 4.5 / 65 Adjustable 10 100 - 1000 PQFN-35
