Infineon’s modular IoT prototyping concept

Infineon MyIoT - Product and kits (LC)

Display portlet menu

Products, boards & kits

Develop, demonstrate, evaluate in an easily and efficiently set-up environment

At Infineon, our mission is to help you transition your idea to a fully functional solution as quickly and effortlessly as possible. One of those contributions making your life easier are the boards listed below. Flexibly combinable into systems, they form the key ingredients for an easy and efficient set-up of your development, demonstration, evaluation environment. High degree of customization, time savings and cost-effectiveness – ideal conditions to turn your ideas into those valuable IoT applications the world is waiting for.

Read below to learn more about:

  • Shield2Go boards
  • Microcontroller Kit
  • My IoT adapter



Infineon’s Shield2Go boards – equipped with security or sensor components

SECURITY – Shield2Go boards based on Infineon’s trusted security solutions

EBV - Infineon MyIoT - Shield2Go Table

Display portlet menu



Image of Optiga Trust E Security Shield2Go

Click here to enlarge image

OPTIGA™ Trust E Security Shield2Go

  • Infineon product: OPTIGA™ Trust E SLS 32AIA
  • Board OPN: S2GOSECURITYOPTIGAETOBO1
  • Description: OPTIGA™ Trust E is a high-security solution. The turnkey set-up with full system integration and all preprogrammed key material aims to minimize your efforts in order to maintain a fast and easy integration. The high-end security controller comes with OS, embedded application and complete host side integration support.
  • Target applications: device authentication, embedded systems networked over the IoT, industrial control and automation, medical devices, consumer electronics, smart home, PKI networks

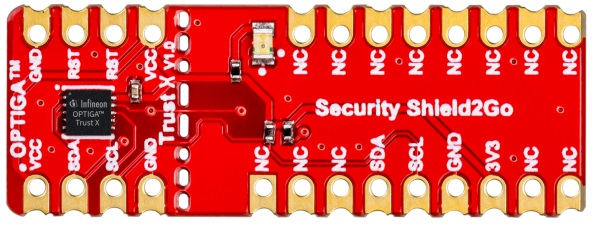

Image of OPTIGA™ Trust X Security Shield2Go

Click here to enlarge image

OPTIGA™ Trust X Security Shield2Go

  • Infineon product: OPTIGA™ Trust X SLS 32AIA
  • Board OPN: S2GOSECURITYOPTIGAXTOBO1
  • Description: OPTIGA™ Trust X covers a broad range of use cases necessary to protect the authenticity, integrity and confidentiality in your device: mutual authentication, secured communication, data store protection, life-cycle management, secured updates, and platform integrity protection. The turnkey set-up with full system integration and all preprogrammed key materials reduces your efforts in design, integration and deployment of high-end security to a minimum.
  • Target applications: embedded systems networked over the IoT, industrial control and automation, medical devices, consumer electronics, smart home, PKI networks

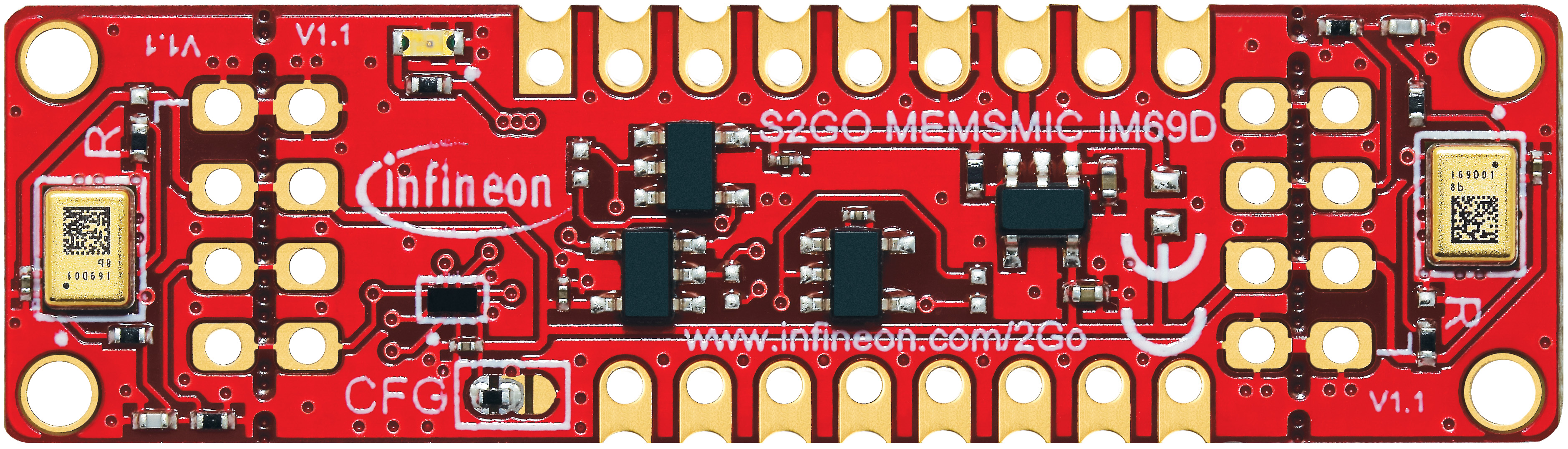

Image of IM69D130 Microphone Shield2Go

Click here to enlarge image

IM69D130 Microphone Shield2Go

  • Infineon product: XENSIV™ MEMS microphone IM69D130
  • Board OPN: S2GOMEMSMICIM69DTOBO1
  • Description: The boards are equipped with two high-performance digital MEMS Microphone IM69D130 in stereo mode configuration and come with a ready-to-use software library for Arduino. With the IM69D130 Shield2Go users benefit from studio-like microphone and recording quality. The microphones come with dynamic range of 105dB where sensitivity (±1dB) and phase (±2° @1kHz) are matched. Other features are: flat frequency response with low-frequency roll-off at 28Hz, very fast analog to digital conversion speed (6µs latency @1kHz), power optimized modes determined by PDM clock frequency, and omnidirectional pickup pattern; The board offers PDM and I2S output configuration.
  • Target applications: voice user interface (VUI) for smart speakers, home automation and IoT devices, active noise cancellation (ANC) headphones and earphones, high-quality audio capturing for cameras, camcorders, and conference systems, audio pattern detection for industrial or home monitoring

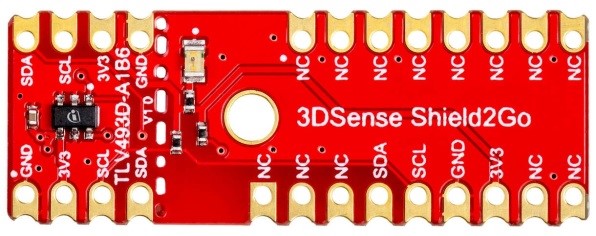

Image of TLV493D 3DSense Shield2Go

Click here to enlarge image

TLV493D 3DSense Shield2Go

  • Infineon product: XENSIV™ magnetic position sensor TLV493D-A1B6
  • Board OPN: S2GO3DSENSETLV493DTOBO1
  • Description: Infineon’s 3D magnetic sensor, the TLV493D-A1B6, offers accurate three-dimensional sensing with extremely low power consumption. Within its small 6-pin package the sensor provides direct measurement of the x, y and z magnetic field components, making it ideally suited for the measurement of 3D movement, linear travel and 360° angle rotation.
  • Target applications: joystick e.g. finger, thumb and gaming paddles, e-meters e.g. anti-tampering, control elements e.g. white goods, multifunction knob



Image of DPS310 Pressure Shield2Go

Click here to enlarge image

DPS310 Pressure Shield2Go

  • Infineon product: XENSIV™ pressure sensor DPS310
  • Board OPN: S2GOPRESSUREDPS310TOBO1
  • Description: The DPS310 is a miniaturized digital barometric air pressure sensor with a high accuracy and a low current consumption, capable of measuring both pressure and temperature. The pressure sensor element is based on a capacitive sensing principle which guarantees high precision during temperature changes. The small package makes the DPS310 ideal for mobile applications and wearable devices.
  • Target applications: smart home, wearables (sport and fitness tracking), drones, indoor and outdoor navigation, accurate altitude metering, weather forecast and storm warning, IoT applications, HDDs



Image of TLI4970 Current Sense Shield2Go

Click here to enlarge image

TLI4970 Current Sense Shield2Go
  • Infineon product: XENSIV™ magnetic current sensor TLI4970-D050T4
  • Board OPN: S2GOCURSENSETLI4970TOBO1
  • Description: TLI4970 is a high-precision coreless magnetic current sensor based on Infineon´s proven Hall technology. The coreless concept significantly reduces footprint compared with existing solutions. It’s an easy-to-use, fully digital solution that does not require external calibration or additional parts such as A/D converters, 0 pA (picoampere) or reference voltage.
  • Target applications: photovoltaic and general purpose inverters, power supplies (SMPS), battery chargers, lighting applications, electrical drives





EBV - Infineon MyIoT - Microcontroller (LC)

Display portlet menu

Microcontroller - ready-to-use evaluation kit

MICROCONTROLLER – Cross-application control

MICROCONTROLLER – Cross-application control

Display portlet menu
Image of XMC™ 2Go kit

XMC™ 2Go kit

  • Infineon product: XMC1100 (ARM® Cortex™-M0 based)
  • Board OPN: KITXMC2GOXMC1100V1TOBO1
  • Description: The XMC 2Go kit with XMC1100 is likely to be the world’s smallest, fully featured microcontroller evaluation kit showcasing the XMC1100 (ARM® Cortex™-M0 based). It does also include an on-board J-Link LITE debugger (realized with XMC4200 microcontroller), a power over USB (micro USB), ESD and reverse current protection, two user LEDs, a pin header (2x8 pin) suitable for breadboard.
  • Software generation platform: DAVE™ Download
  • DAVE™ application list: Available DAVE™ APPs
  • Target application: industrial



EBV - Infineon MyIoT - IoT adapter (LC)

Display portlet menu

Infineon’s solution for connecting your choice of Shield2Go boards

My IoT adapter – Connectivity when being combined with external hardware

EBV - Infineon MyIoT - IoT adapter Table

Display portlet menu
Image of Shield2Go Adapter board

My IoT adapter board (to be used with Arduino Uno)

  • Board OPN: MYIOTADAPTERTOBO1
  • Description: The My IoT adapter enables the easy combination of different Infineon Shield2Go boards for fast evaluation and development of IoT systems and devices, as well as quick prototyping. When combined with external hardware solutions like the popular IoT hardware platform, Arduino Uno, it ensures connectivity.
  • All Shield2Go boards share a common pin out design, i.e. pins are hard coded to specific functions like SPI or I2C. This enables a generic PCB evaluation board design for Infineon’s portfolio of Shield2Go boards.
  • Target applications: embedded systems networked over the IoT, industrial control and automation, consumer electronics, smart home, PKI networks
