Infineon Technologies BTS7200-4EPA four channel high-side switch

BTS7200-4EPA is a four-channel smart high-side switch and belongs to the PROFET™+2 12V product family

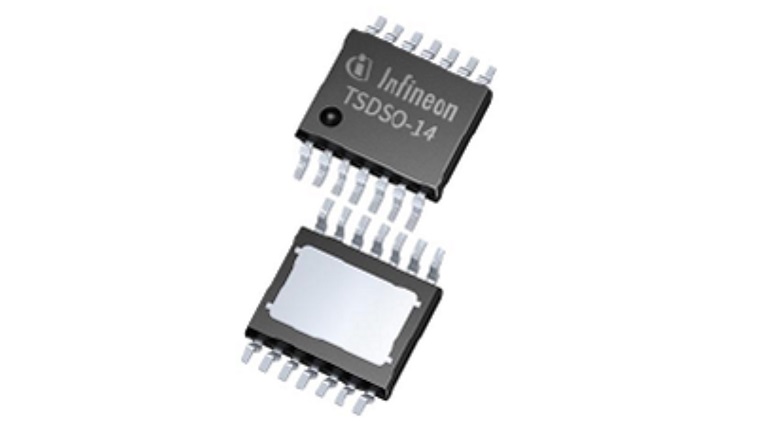

 Infineon Technologies BTS7200-4EPA product image

BTS7200-4EPA is a four-channel smart high-side switch and belongs to the PROFET™+2 12V product family. All PROFET™+2 12V family members provide state of the art diagnostics and protection features in a PG-TSDSO-14 exposed pad package. Moreover, the family provides outstanding energy efficiency with reduced current consumption, state of the art current sense accuracy (kILIS), benchmark low cranking voltage capability and faster switching/slew rate with no impact on EMC. The whole portfolio is qualified for automotive applications according to AEC-Q100 Grade1.



Key features

  • High-Side Switch with Diagnosis and Embedded Protection
  • Part of PROFET™+2 12V Family
  • Reverse ON for low power dissipation in Reverse Polarity
  • Switch ON capability while Inverse Current condition (Inverse ON)



Additional features

  • Green Product (RoHS compliant)
  • Qualified in accordance with AEC Q100 grade1
  • Absolute and dynamic temperature limitation with controlled restart
  • Overcurrent protection (tripping) with Intelligent Restart Control
  • Undervoltage shutdown
  • Overvoltage protection with external components
  • Proportional load current sense
  • Open Load in ON and OFF state
  • Short circuit to ground and battery



Applications

  • Relay and Fuse Replacement
  • Suitable for resistive, inductive and capacitive loads
  • Driving capability suitable for 1 A loads



Available tools

BTS7200-4EPA Daughterboard

  • This daughterboard comes with 1 high-side switch of BTS7200-4EPA and is compatible with the PROFET™+2 12V motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daughterboard is capable to drive typical automotive loads.
  • Order code: BTS72004EPADAUGHBRDTOBO1

PROFET™ PLUS2 Motherboard

  • This motherboard is designed to handle several devices within the PROFET™+2 12V family. Banana connectors are provided for the connection to the power lines. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daughterboard is capable to drive typical automotive loads.
  • Order code:  PROFETPLUS2MOTHBRDTOBO1
