New Product Information

Vishay VOT8026A optocoupler, phototriac output, low input current

The VOT8026A consists of a GaAs IRLED optically coupled to a photosensitive zero crossing TRIAC packaged in a DIP-6 package

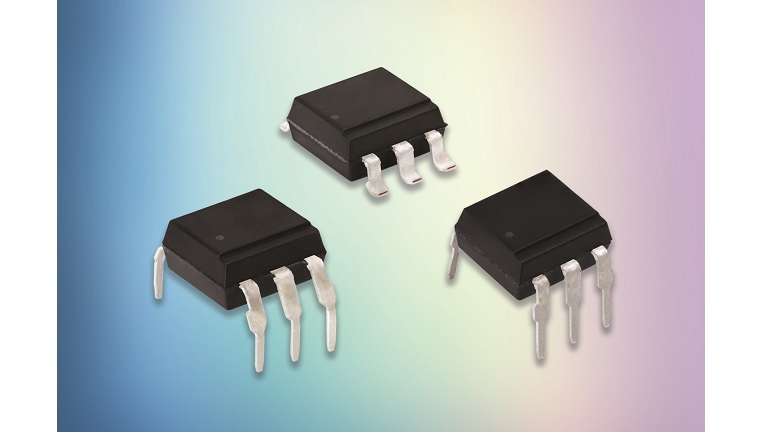

Vishay VOT8026A product picture

The VOT8026A consists of a GaAs IRLED optically coupled to a photosensitive zero crossing TRIAC packaged in a DIP-6 package.

VOT8026A isolates low-voltage logic from 120 VAC, 240 VAC, and 380 VAC lines to control resistive, inductive, or capacitive loads including motors, solenoids, high current thyristors or TRIAC and relays.



Key features

  • High isolation distance on output
  • High static dV/dt 1000 V/μs
  • High input sensitivity IFT = 5 mA
  • 100 mA on-state current



Additional features

  • Zero voltage crossing detector
  • 800 V peak off-state blocking voltage
  • Isolation rated voltage 5300 VRMS



Applications

  • Power TRIAC driver in solid-state relays
  • 3-phase AC equipment
  • Motor control
  • Industrial control
  • White goods / household equipment
