New Product Introduction

ON Semiconductor FUSB303 autonomous USB Type-C port controller

The FUSB303 device is a fully autonomous USB Type−C™ controller optimized for 15 W or less applications.

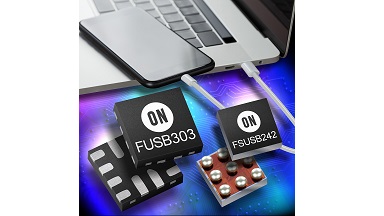

ON Semiconductor FUSB303 product image

The FUSB303 device is a fully autonomous USB Type−C™ controller optimized for 15 W or less applications. The FUSB303 offers CC logic detection for Source Port role, Sink Port role, DRP, and accessory detection support, as well as Dead Battery support as defined in USB−C specifications. The FUSB303 features configurable address I2C access to support multiple ports per system or it can operate autonomously configured by just pins. The FUSB303 features ultra−low power during operation, and an ultra−thin, 12−Lead QFN package.



Key features

  • Supports Latest Type−C™ Specification Release 1.3
  • Source, Sink, and DRP Port role Configuration
  • Try.SRC and Try.SNK modes
  • VDD Operating Range, 2.85 V − 5.5 V



Additional features

  • Fully Autonomous USB−C™ Port Controller
  • Supports Latest Type−C™ Specification Release 1.3
  • Source, Sink, and DRP Port role Configuration with Optional Accessory Support
  • Try.SRC and Try.SNK modes for Preferring Source Role or Sink Role Respectively
  • VDD Operating Range, 2.85 V − 5.5 V
  • Typical Low Power Operation: ICC < 10µA
  • GPIO and I2C Configuration
  • Max 28 V DC Tolerance on ID, VBUS_DET, CC1 and CC2
  • Dead Battery Support (Sink Port role when No Power Applied)
  • 4 kV HBM ESD Protection for Connector Pins



Applications

  • ​​USB-C Port Controller
  • Smartphones
  • Tablets
  • Laptops
  • Accesories
  • Industrial
  • Power Banks



Available tools

The FUSB303 device is a fully autonomous USB Type-C controller optimized for 15W or less applications. The FUSB303 offers CC logic detection for Source Port role, Sink Port role, DRP Port role, and accessory detection support, as well as Dead Battery support as defined in USB-C specifications. The FUSB303 features configurable I2C address to support multiple ports per system or it can operate autonomously configured by just pins. The FUSB303 features ultra-low power during operation and an ultra-thin, 12 Lead QFN package.
