New Product Introduction

NXP Semiconductors i.MX RT1020 high-performance features

The i.MX RT1020 is the latest product to launch within NXP i.MX RT Series, offering a lower price, being the lowest cost of all i.MX products; it also adds LQFP packages, enabling real 2-layer PCB designs

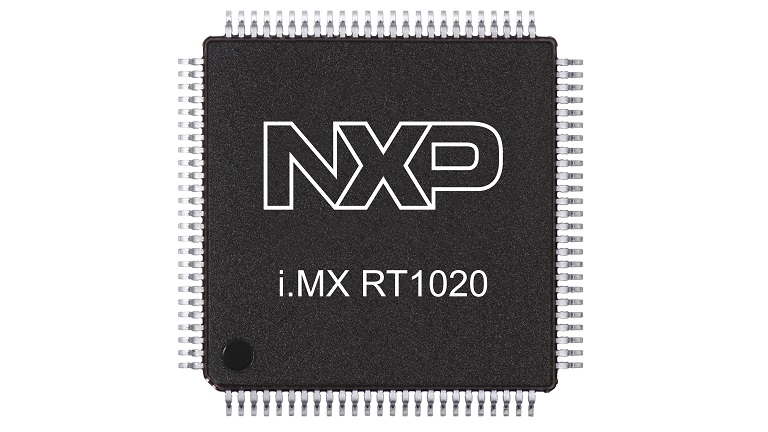

NXP i.MX RT1020 product image

Building upon decades of leadership in providing both MCUs and applications processors, NXP has developed a new series of embedded processors that fully embodies the best of two worlds: Application processor and Microcontrollers.

The i.MX RT1020 is the latest product to launch within NXP i.MX RT Series, offering a lower price, being the lowest cost of all i.MX products; it also adds LQFP packages, enabling real 2-layer PCB designs; All while maintaining the high performance, based on Arm® Cortex®-M7 core.



Key features

  • High-Performance, Real-Time Processing
  • Low Cost, Lowest cost i.MX of the complete portfolio
  • Rich Integration, extensive external memory interfaces
  • Easy for MCU-based developers to use


Additional features

Processor

  • NXP Semiconductors MIMXRT1021, 500MHz ARM Cortex-M7, 144 LQFP

Memory

  • 256 Mbit SDRAM memory
  • 512Mbit Hyper Flash
  • Footprint for QSPI Flash
  • TF socket for SD card

Audio

  • Audio Codec
  • 4-pole Audio Headphone Jack
  • External speaker connection
  • Microphone

Connectivity

  • Micro USB OTG connector
  • Ethernet (10/100T) connector
  • CAN transceivers
  • ARDUINO interface

Sensor

  • 6-axis ecompass (3-axis Mag, 3-axis Accel) sensor (FXOS8700CQ)

Debug

  • JTAG connector
  • On-board DAP-Link debugger

2 layer through hole PCB


Applications

  • home & building automation
