New Product Introduction

Nexperia LV-A Logic Gates for modular standby applications

LV-A technology supports a wide supply voltage range from 2.0V to 5.5V and offers low noise characteristics (VOL(p) < 0.8 V)

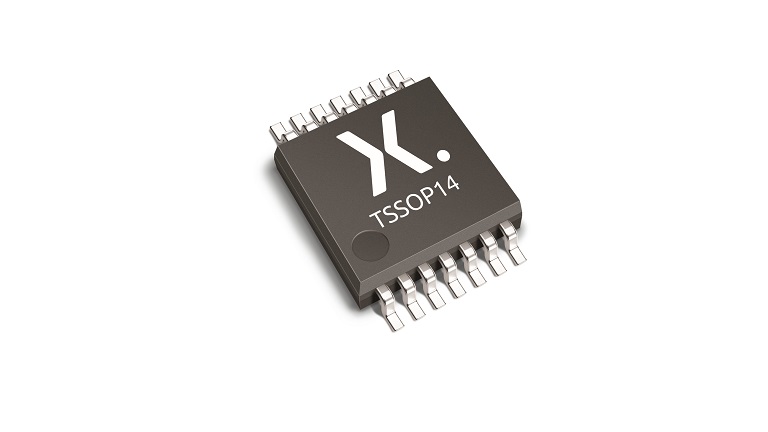

Nexperia LV-A Logic Gates product image

LV-A logic solutions from Nexperia feature low leakage IOFF circuitry, for modular standby applications. LV-A technology supports a wide supply voltage range from 2.0V to 5.5V and offers low noise characteristics (VOL(p) < 0.8 V). Our new AND, NAND, OR & NOR LV-A gates are suitable for computing, printer and smart TV applications and are available in industry-standard TSSOP14 (SOT402-1) packages.


Key features

  • Low noise operation: VOL(p) < 0.8 V
  • Over-voltage tolerant inputs
  • Supply voltage range from 2.0 V to 5.5 V
  • Partial power down support (IOFF circuitry)


Additional features

  • Support of mixed-mode voltage operation on all ports
  • IOFF circuitry supports partial Power-down mode operation
  • Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
  • 74LV7032APW with Schmitt-trigger inputs for interfacing slowly transitioning input signals into sharply defined and jitter-free output signals.
  • Industry-standard TSSOP14 (SOT402-1) packages
  • Temperature Range from -40 °C to +125 °C



Applications

  • Medium and low speed applications
  • Standby & power-down applications
  • Computing peripherals incl. printers
  • Home entertainment incl. TV & STB
