New Product Introduction

Broadcom Qwave AFBR-S20W1XX compact USB spectrometer

Compact spectrometer with high optical performance, resolution and sensitivity for optical measurements between 190 nm and 1040 nm

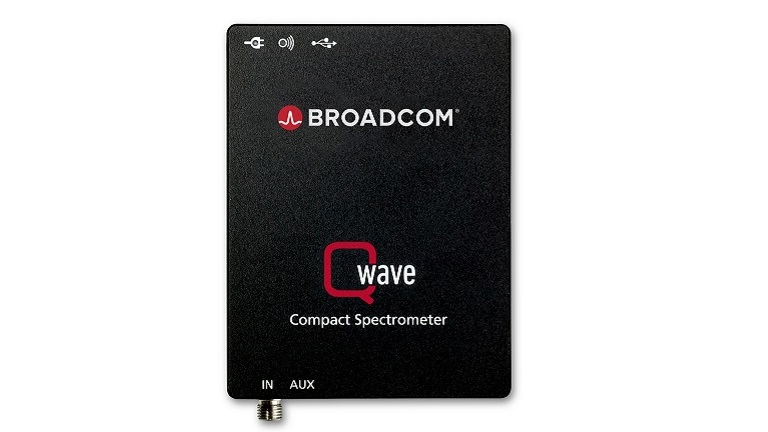

Broadcom Qwave AFBR-S20W1XX product image

Compact spectrometer with high optical performance, resolution and sensitivity for optical measurements between 190 nm and 1040 nm.

Dimensions: 89.5 x 68.0 x 19.5 mm



Key features

  • Spectral resolution from 0.2 nm
  • High sensitivity
  • Exceptional thermal stability
  • Includes sophisticated spectroscopy software


Additional features

This is a compact USB spectrometer with high resolution, dynamic range and sensitivity for UV–VIS–NIR measurements. Combined with our application software, the Qwave spectrometer is the ideal spectroscopic instrument for applications that require high performance in a compact design.

With its focal length of 75 mm, the Qwave offers technical specifications that you would normally expect to find in much larger spectrometers. Combined with our unique spectroscopy software, Waves, it is the ideal spectroscopic instrument for applications that require a resolution of 0.2 to 0.5 nm and a numerical aperture of up to 0.10.



Applications

  • Light analysis
  • Chemical research
  • Raman sprectroscopy
  • Forensic analysis
  • System integration
  • Process control and monitoring
  • Biomedical applications



Product family


Part numbers



AFBR-S20W1UV



AFBR-S20W1V1



AFBR-S20W1NI


Product name


Qwave UV

Qwave VIS

Qwave NIR



Wavelength range


220-400 nm



350-880 nm



700-1040 nm



Spectral resolution (FWHM)



0.2 nm



0.5 nm



0.4 nm
