New Product Introduction

Infineon BTN8962TA & BTN8982TA NovalithIC™

NovalithIC™ provides a complete low-ohmic-protected half-bridge in a single package

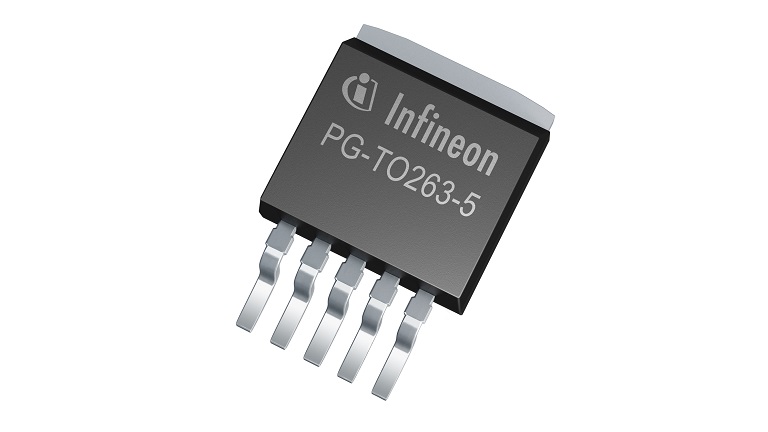

Infineon BTN8962TA & BTN8982TA product picture

NovalithIC™ provides a complete low-ohmic-protected half-bridge in a single package. It can be combined with an additional NovalithIC™ to create an H-bridge or 3-phase bridge as well. The NovalithIC™ family has the capability to switch high frequency PWM while providing overcurrent, overvoltage and overtemperature protection. The NovalithIC™ family offers cost-optimized solutions for protected high-current PWM motor drives with very low board-space consumption - scaled to your needs.



Key features

  • Integrated half-bridge
  • PWM capability
  • Logic-level input: Connects directly to MCU
  • Adjustable slew rates for optimized EMI


Additional features:

  • Current sense capability
  • Overtemperature shut down
  • Integrated dead-time generation
  • Easy to use and fast design-in
  • Full flexibility
  • Cost optimized through system level savings
  • Functional safety
  • Configuration flexibility


Applications

  • Fuel pump
  • Sun roof
  • Electric parking brake
  • Fans
  • HVAC blower
  • Body control module
  • Engine cooling fan
  • Wiper
  • Tail gate
  • Sliding door


Available Tools

  • DC Motor Control Shield with BTN8982TA
    The DC motor control shield from Infineon technologies is one of the first high current motor control boards being compatible to Arduino as well as to Infineon’s XMC1100 Boot Kit - more information infineon.com
    Order Code: DCMOTORCONTRBTN8982TOBO1
  • DC-MOTORCONTR_BTN8982
  • DEMOBOARD BTN8962TA
  • DEMOBOARD BTN8982TA
  • KIT_AURIX_TFT_MC_EXT



Learn more about Infineon ATV Motor Drives
