Molex Spot-On Wire-To-Board Connector System

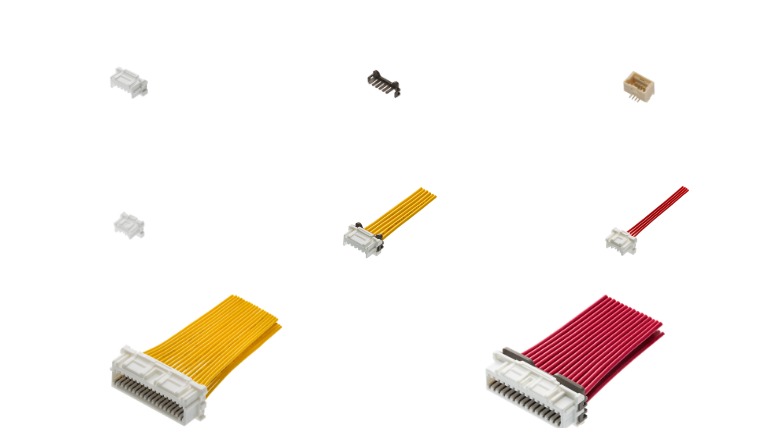

Spot-On wire-to-board 1.50mm and 2.00mm pitch connector system

Molex proudly presents Spot-On wire-to-board 1.50mm and 2.00mm pitch connector system

Molex Spot-On Wire-To-Board Pitch Connector System

The industry’s first SMT potting wire-to-board connector system with improved process capabilities and mechanical reliability protects against water ingress in white goods applications requiring potting treatment.



Features

  • Retainer
    • Provides secure insertion of crimped terminal
  • Positive inner lock
    • Offers secure mating retention and prevents wire tangling and latch breakage
  • Fully polarized and color-coded receptacle housing
    • Ensures fool-proof mating of the wired assembly
  • Robust center nail
    • Reduces stress on SMT solder joints to prevent solder cracking
  • Higher profile plug housing
    • Ensures protection from potting material ingress into housing. The maximum potting height is 5.00mm for Single-Row Connector (8 Circuits) and Dual-Row Connector (40 Circuits)
    • Ensures protection from potting material ingress into housing. The maximum potting height is 7.00mm for Single-Row Connector (6 Circuits) and Dual-Row Connector (30 Circuits)
  • SMT mounting tails
    • Automated assembly reduces manual labor processes



Applications

  • Home Appliance
    • Air conditioner
    • Refrigerator
    • Microwave oven
    • Washing machine
    • Water heater
    • Shower toilet
    • Washer/Dryer
    • Stove
