Molex CLIK-Mate Connector System

Molex CLIK-Mate connector system gold-plated versions

Molex proudly presents CLIK-Mate connector system gold-plated versions

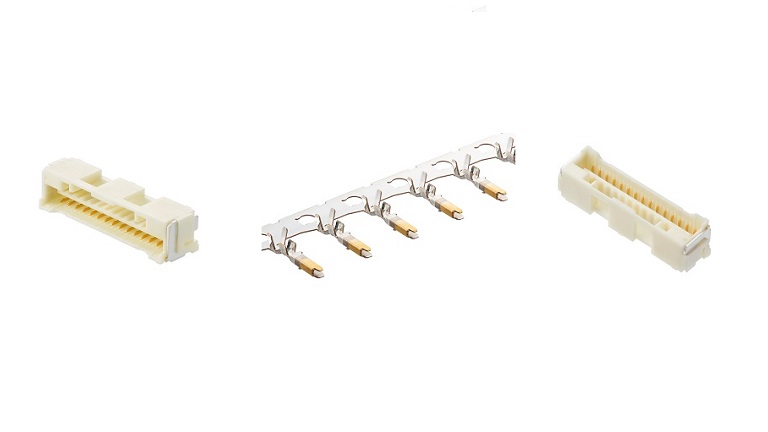

Molex CLIK-Mate Connector System Gold-plated Versions

The rugged CLIK-Mate wire-to-board system provides secure electrical contact, low insertion force and mating assurance in a wide variety of configurations, circuit sizes and current options.



Features

  • Dual in-line package with surface-mount technology
    • Provides space saving
  • Single/dual row, vertical/horizontal configurations and tin/gold plating with multiple color options
    • Provides design flexibility
  • Dual inner positive locks
    • Provides mating assurance and enables simplified cable assembly for operators
  • Click sound and feeling when mated
    • Provides mating confirmation
  • Tuning-fork style contact design
    • Offers secure electrical contact and avoids terminal stubbing
  • Bottom-entry mounting version
    • Offers space savings and simplification of wiring compared to top-mounting styles



Applications

  • Consumer
    • Gaming machines
    • LCD and TV panels
  • Automotive
    • Infotainment
    • Interior mirrors
  • Lighting
    • LED light modules
    • Office down lights
  • Industrial
    • Scanners
    • Smart grid meters
  • Medical
    • Patient monitors
    • Surgical equipment
