Molex 2.4 and 5 GHz WiFi Antennas

206995 series 2.4 and 5 GHz WiFi PCB monopole antennas

Molex proudly presents 206995 series 2.4 and 5 GHz WiFi PCB monopole, centre-fed antennas

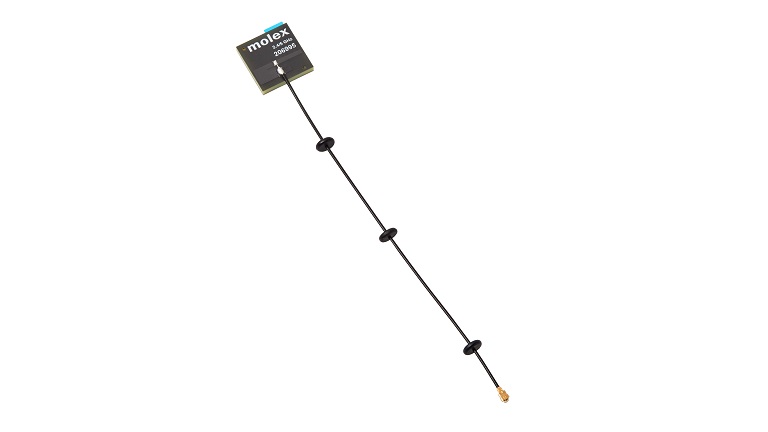

Molex 206995 Series 2.4 And 5 GHz WiFi PCB Antenna

Designed for fast and easy integration into wireless devices at minimal implementation cost, side and center-fed cable Flexible Antenna enable highperformance RF transmission for the most demanding Wi-Fi applications.



Features

  • UFL-type connector
    • Secures to the application’s device radio
  • Topside of the polyflexible antenna
    • Makes for easy peel-andstick mounting anywhere within the device chassis
  • Double-sided adhesive on the antenna reverse
    • Enables instant application anywhere on the inner wall of the device chassis by just removing its tape liner
  • Micro-coaxial cable, 100mm
    • Ensures optimum RF performance for easy connectivity to radio devices
  • Rigid PCB antenna with two holes on both sides for screw-nut mounting
    • Offers more robust securing of antenna to device chassis in rugged applications
  • Micro-coaxial cable (50, 100, 150, 200, 250, 300mm options)
    • Extends connectivity for maximum design flexibility
  • Self adhesive mounting on metal and non-metal surface
    • Enables instant application anywhere on the device
  • Highly compact, sidefed monopole antenna
    • Offers significant space savings while supporting highperformance needs
  • Cable and connector can be customized
    • Provides design flexibility
  • UFL-type connector
    • Secures to the application’s device radio



Applications

  • Consumer
    • Connected Home
    • Smart Home
  • Automotive
    • Connected Vehicle
    • Comfort and Infotainment
  • Industrial
    • Smart Cities
