M300 series 10A high reliability connectors

Harwin has introduced M300 series 10A high reliability connectors

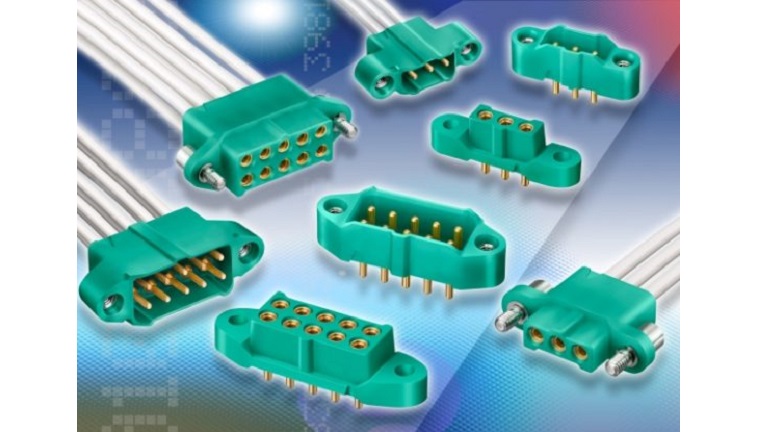

Harwin M300 Series10A High Reliability Connectors

The M300 series is a 3.00mm pitch high-reliability, high performance connector range suited to aerospace, defense, industrial and other harsh environment applications.

It provides a choice of 3, 6 or 10 contact board-to-board, cable-to-board and cable-to-cable options for applications requiring up to 10A in a confined space. Featuring a rear wall to assist the backpotting for additional strain relief, the housings are designed with ‘scoop-proof’ mating requirements for added handling assistance.

Housings come with jackscrew fixtures to achieve vibration and shock performance, and are future-proofed with halogen-free, RoHS compliant materials.



Features

  • Up to 10A per signal contact (all electrically loaded; 5A if 22AWG wire is used) at 3mm pitch
    • Capable of a variety of power uses within a compact design, saving PCB real estate
  • Proven 4-finger contact design
    • Maintains electrical continuity through high vibration and shock environments
  • Beryllium Copper Contact with -65°C to +175°C temperature range
    • Rugged and durable connector design with proven track record
  • 1,000 Mating cycles durability
    • Suitable for both fit-and-forget and multiple testing and replacement cycles
  • Future-proofed material usage
    • Halogen-free, PFOS-free, SVHC-free and RoHS compliant
  • Low outgassing properties
    • Meets NASA outgassing requirements for vacuum or space usage
  • Full cable assembly options off-the-shelf
    • Reduced delivery , fully tested assemblies with hassle-free installation



Applications

  • Aerospace, Defense & Security
    • Radar, avionics controls, guidance systems, UAVs, engine power management, vehicle electronics
  • Motorsport & Transport
    • Navigation, ERS controls, GPS and telemetry system
  • Space
    • Satellites & CubeSats, communications, launch systems, radar and communications
  • Industrial
    • Robotics, automation, drives & controls
  • Energy
    • Oil & Gas, renewable energy equipment
