Bourns SRP6030VA/1040VA Series

Bourns SRP6030VA/1040VA AEC-Q200 high temperature power inductors

Bourns Inductive Components Product Line is introducing the Model SRP6030VA and SRP1040VA Series High Temperature Shielded Power Inductors

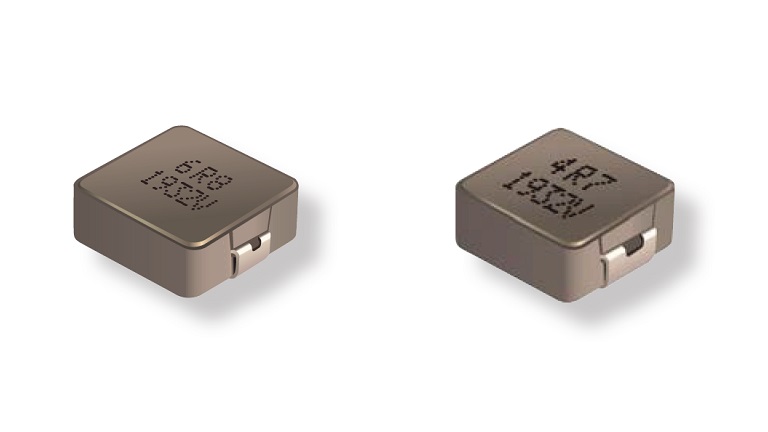

Bourns SRP6030VA/1040VA Series Shielded Power Inductors

Bourns Inductive Components Product Line is introducing the Model SRP6030VA and SRP1040VA Series High Temperature Shielded Power Inductors. These models are built with a new metal alloy powder formulation and round enamel coated copper wire. The new metal alloy powder formulation allows for an extremely high operating temperature of 180 °C (incl. self heating) which makes these AEC-Q200 compliant inductors ideal for many high temperature environments. These inductors feature low DC resistance, high heating / saturation current, low buzz noise, excellent temperature stability and shielded construction for low magnetic radiation.

The Model SRP6030VA and SRP1040VA series are AEC-Q200 Compliant. These inductors are well suited for DC/DC converters and power supplies in consumer, industrial, low/medium risk medical*** and telecom applications where higher inductor reliability at elevated operating temperatures may be required.



Features

  • Shielded construction
  • Metal alloy powder core
  • High saturation current
  • Low buzz noise
  • High operating temperature: 180 °C
  • AEC-Q200 compliant
  • RoHS compliant* and halogen free**



Applications​

  • DC/DC converters
  • Power supplies

* RoHS Directive 2015/863, Mar 31, 2015 and Annex.
** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less; (b) the Chlorine (Cl)
content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less.
*** Bourns® products have not been designed for and are not intended for use in “lifesaving,” “life-critical” or “life-sustaining” applications nor any other applications
where failure or malfunction of the Bourns® product may result in personal injury or death. See Legal Disclaimer Notice http://www.bourns.com/docs/legal/disclaimer.pdf.
