2019 series FLAT® GDT surge arrestor

Bourns is pleased to announce the release of the Model 2019 Series Gas Discharge Tube (GDT) Surge Arrestor with FLAT® Technology

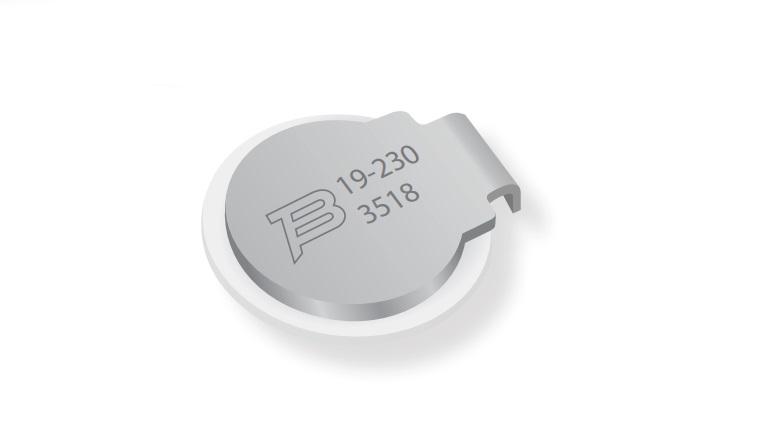

Bourns 2019 Series FLAT® GDT Surge Arrestor

Bourns is pleased to announce the release of the Model 2019 Series as Discharge Tube (GDT) Surge Arrestor with FLAT® Technology. Bourns again sets a new industry standard by offering a high current rated 2-electrode GDT in an innovative flat-package design. Bourns’ FLAT® Technology delivers high performance in a compact package.

The Model 2019 Series is an ITU K.12 Class IV GDT device rated at 25 kA maximum on an 8/20 μs waveform. The series is offered with DC breakdown voltages ranging from 90 to 230 V.

The new series features an innovative low profile, horizontal surface mount design that achieves a significant savings in height when compared to a standard 8 mm GDT.



Features

  • Compact, space-saving design
  • High surge rating
  • Stable performance over life
  • Low leakage and insertion loss
  • Constant capacitance regardless of voltage
  • Low arc voltage
  • Horizontal design provides a significant height and volume savings vs an 8 mm SMD Bourns® GDT
  • Devices do not impact signal or system operation
  • Voltage limting suitable for sensitive equipment
  • Long term reliability and performance
  • Bottom-side PCB mountable
  • RoHS compliant*
  • Halogen free**



Applications

  • Telecom equipment
  • Industrial communications
  • Surge Protective Devices
  • High density PCB assemblies

* RoHS Directive 2015/863, Mar 31, 2015 and Annex.
** Bourns considers a product to be “halogen free” if (a) the Bromine (Br) content is 900 ppm or less;
(b) the Chlorine (Cl) content is 900 ppm or less; and (c) the total Bromine (Br) and Chlorine (Cl) content is 1500 ppm or less. ​
