Minitek® Pwr 5.7 connector system

Minitek® Pwr 5.7 is a flexible and comprehensive solution for power application with a high current rating up to 23A per contact and wire gauge range from 16AWG-12AWG for wire-to-board application

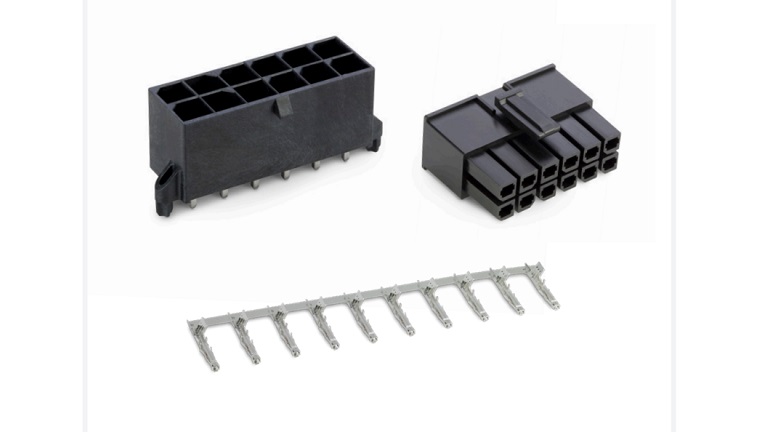

Amphenol ICC Minitek® Pwr 5.7 Connector System

Minitek® Pwr 5.7 is a flexible and comprehensive solution for power application with a high current rating up to 23A per contact and wire gauge range from 16AWG-12AWG for wire-to-board application. Minitek® Pwr 5.7 features polarized mating geometry, this helps to prevent mismating. It offers a wide operating temperature, ranging -40°C to 105°C, making it suitable for a wide range of applications. The scoop-proof housing prevents terminals from damage.

  • 5.7mm pitch power contacts
  • High current rating up to 23A per contact
  • Solutions for wire-to-board applications



Features and benefits

  • 2.54mm and 5.08mm pitch
  • High temperature compatibility
  • Selective contact loading option
  • FMLB and LMEB contacts
  • Various termination types available
  • NFF 16-101/102 and EN45545-2 certified
  • Rear plug up option
  • Wide range of accessories available
  • Adequate spacing for routing PCB trace
  • Facilitates custom loading
  • Reliability and no arcing damage on contact resting position
  • Grounding option
  • Flexible PCB mounting options
  • Suitable for railway applications
  • Extended mating applications via shroud on rear side of PCB
  • Enhances connector suitability and flexibility



Applications

  • Communications
    • 1U Rack Box
    • Customer Premises Equipment
    • Generic Telecom Box
    • Interface Converter
    • WiMax Box
  • Data
    • Blade Server
    • Desktop PC and Motherboard
    • HDD Application
    • Rack-Mount Server
    • Server-Orthogonal Configuration
  • Consumers
    • Air Conditioner
    • Microwave Oven
    • Refrigerator
    • Set top box
  • Industrial & Instrumentation
    • Defibrillator
    • Hospital Bed
    • Patient Monitor
    • Ultrasound Equipment
  • Military
    • Chemical Detection System
    • Radar Equipment
