770587-1

TE Connectivity

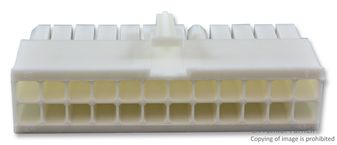

Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual

制造商料号#: 770587-1

替代型号#: 770587-1


通过RoHS认证

描述

文档

替代/替换

信息

Conn Housing M 24 POS 4.14mm Crimp ST Cable Mount Individual

技术参数

  • Compact, durable housings
  • Pins and sockets can be accommodated in the same housings
  • Contacts fully protected in the housings. Both pins and sockets can be used on the power supply wiring
  • Fully polarized to provide proper plug-to-cap mating incorporating a positive locking mechanism to help prevent accidental disengagement of mated connectors. Also facilitates panel mounting
  • Free-hanging or panel mount
  • Housings available in 1, 2, 3, 4, 6, 9, 12 and 15 circuit configuration for wire-towire connection
  • Connectors can be mounted to .031-.079 [0.79-2.00] thick panels
  • Printed circuit board pin headers are available in 24 circuit vertical and right-angle configurations
  • Hermaphroditic housings available in 2, 3 and 4 circuits for free-hanging applications
  • Low insertion/extraction forces
  • Contacts accept wire size range 30-16 AWG [.05-1.2 mm2]
  • Test probe contacts available
  • .163 [4.14] centerline spacing
  • Not for interrupting current

技术特性

描述
寻找类似物料
Product Length
51.38 mm
Housing Color
White
Number of Rows
2
Maximum Current Rating
9.5/Contact A
Family
Mini-Universal MATE-N-LOK Wire-Applied Conn.
Body Orientation
Straight
Product Dimensions
51.38 x 23.83 x 15.19 mm
Mounting
Cable Mount
Type
Housing
Wire Size
16 to 30 AWG
Housing Material
Nylon
Pitch
4.14 mm
Gender
M
Number of Contacts
24 POS
Operating Temperature
-55 to 105 °C

ECCN / UNSPSC

描述
ECCN:
EAR99
计划交货期 B:
8536.9000-00
HTSN:
8536.9000-00
UNSPSC:
39121400
UNSPSC VERSION:
V15.1101
