Manufacturer:
Abracon
Product Category:
Clock & Timing,
Crystals

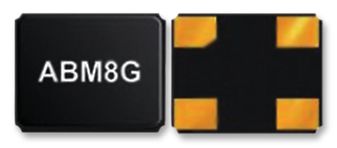

ABM8G-48.000MHZ-18-D2Y-T
Crystal, Standard, 48 MHz, SMD, 3.2mm x 2.5mm x 1mm, 30 ppm, 18 pF, 20 ppm, ABM8G
Avnet Manufacturer Part #:
ABM8G-48.000MHZ-18-D2Y-T
RoHS 6 Compliant
Crystal, Standard, 48 MHz, SMD, 3.2mm x 2.5mm x 1mm, 30 ppm, 18 pF, 20 ppm, ABM8G
Key Features
- Low in height; suitable for thin equipment
- Glass sealed package assures high reliability and high temperature operation
- Tight tolerance and stability available
- IR reflow capable
- Low cost version of ABM8 crystal
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Crystal Mounting | Surface Mount |
|
|
Frequency Stability + / - | 30 ppm |
|
|
Crystal Frequency | 48 MHz |
|
|
Crystal Case / Package | CSMD |
|
|
Frequency Tolerance + / - | 20 ppm |
|
|
No. of Pins | 4 |
|
|
Operating Temperature Min | -40 °C |
|
|
Operating Temperature Max | 85 °C |
|
|
Load Capacitance | 18 pF |
|
|
ESR | 50 Ohm |
|
|
Crystal Dimensions | 3.2mm x 2.5mm x 1mm |
|
|
Product Range | ABM8G Series |
|
|
Crystal Type | Standard |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
