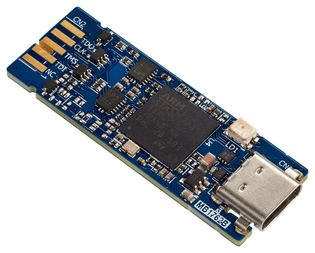

STLINK-V3MINIE

STLINK-V3MINIE is a STLINK-V3 compact in-circuit debugger and programmer for STM32. It is a stand-alone debugging and programming tiny probe for STM32 microcontrollers. The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board. STLINK-V3MINIE also provides a virtual COM port interface for the host PC to communicate with the target microcontroller through one UART. STLINK-V3MINIE is a portable version easy-to-use debugger and programmer including STDC14 interface with its flat cable and on-board pads for board-to-board (BTB) card edge connector.

• Self-powered through a USB Type-C® connector
• USB 2.0 high-speed interface
• Probe firmware update through USB
• Optional drag-and-drop flash memory programming of binary files
• Communication bi-colour LED
• JTAG communication support upto 21MHz
• SWD (serial wire debug) and SWV (serial wire viewer) communication support upto 24MHz
• Virtual COM port (VCP) upto 15Mbps
• 1.65 to 3.60V application voltage support
• USB Type-C® connector, 2mm pitch on-board pads for BTB (board-to-board) card edge connector
